Tianjin JMT Electric Co., Ltd. is one of the leading manufacturers and suppliers of mcb 6ka in China. We warmly welcome you to buy advanced mcb 6ka made in China here from our factory. All customized products are with high quality and competitive price.

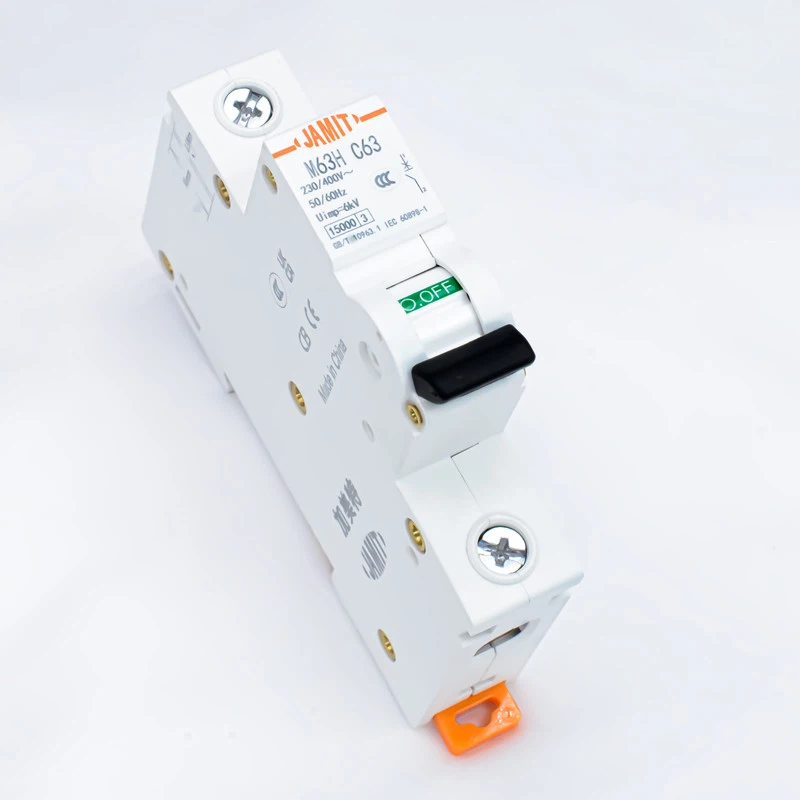

| Product introduction |
1-63A AC Electrical Miniature Circuit Breaker; 1-63A DC Miniature Circuit Breaker; 1-63A M63SD |
| Brand Name | JAMIT |
| Model |
M63M AC; M63MDC;M63SD |
| Application |
M63M AC: Household, commercial office buildings, residential buildings, and general industrial applications M63M DC: Household, commercial office buildings, residential buildings, and general industrial applications M63SD: Household, commercial office buildings, residential buildings, and general industrial applications |
| Rated current(A) |
1,2,4,6,10,16,20,25,32,40,50,63 |
| Max. Voltage |
M63M AC: AC240V/AC415V M63MDC: DC250V(1P); DC500V(2P); DC1000V(4P) M63SD: AC230/240V(1P,1P+N,2P); AC415/440V(3P,3P+N,4P) |
| Rated short-circuit capacity Icn | 6KA |
| Rated operation short-circuit breaking capacity Ics | 6KA |
| Mechanical times |
30,000 |
| Pole |
M63M AC/M63SD: 1P/2P/3P/4P/1P+N/3P+N M63MDC: 1P/2P/4P |
| Size |
M63M/M63SD: 97*82.8*18mm(1P);2P *2;3P *3;4P *4; 1P+N*2; 3P+N*4 M63MDC: 97*82.8*18mm(1P);2P *2;4P *4 |
| Materials |
Case: PA 66, Coil: 100% copper |
| Characteristics |
M63M AC: 1P/2P/3P/4P/1P+N/3P+N Short circuit protection, overload protection, isolation function M63MDC: 1P/2P/4P Short circuit protection, overload protection, isolation function M63SD: Short circuit protection, overload protection, isolation function |
| Standard |
M63M AC: GB/T 10963.1 IEC 60898-1 M63MDC: GB/T 14048.2 IEC 60947-2 M63SD: GB/T 10963.1 |
| Certification |
CCC, CE, CB, UKCA(United Kingdom) |
| Warranty time |
36Months |
| Advantage |
low energy consumption and high breakage circuit breaker |
| Package |
imprint, inbox, master carton |
| Color | white & orange |
| MOQ | 3000 poles |
| Payment | 30% in advance, balance to be paid before shipment |
| Port |
TJ/designated domestic port |
| Product Time | 30days |
| Sample Time | 7days |
| Delivery time |
30days |
Technical Parameters
M63M AC
|
Product Model |
M63M |
|
|
Rated current (A) |
1,2,4,6,10,16,20,25,32,40,50,63 |
|
|
Rated voltage Ue (V) |
AC240/415V(1P) |
|
|
Rated operating frequency (Hz) |
50/60 |
|
|
Pole No. |
1P,2P,3P,4P,1P-N,3P-N |
|
|
Mechanical life(times) |
30000(Enterprise standard) |
|
|
Electrical life(times) |
15000(Enterprise standard) |
|
|
Rated short-circuit capacity Icn(A) |
6000 |
|
|
Rated operation short-circuit breaking capacity Ics(A) |
6000 |
|
|
Rated insulation voltage Ui(V) |
440 |
|
|
Rated impulse withstand voltage Uimp (kV) |
4 |
|
|
Dielectric test voltage (V) |
2000(50Hz,1min) |
|
|
Anti-vibration (IEC/EN60068-2-6) |
No obvious vibration and impact |
|
|
Wire terminal |
Minimum sectional area of connectable conductor (mm²) |
1 |
|
Maximum sectional area of connectable conductor (mm²) |
35 |
|
|
Standard connection torque (N·m) |
3.5 |
|
|
Maximum allowable torque (N·m) |
5 |
|
|
Lead insertion depth (mm) |
10 |
|
|
Reference temperature (°C ) |
30 |
|
|
Operating temperature (°C ) |
-35~+70 |
|
|
Storage temperature (°C ) |
-35~+85 |
|
|
Applicable altitude (m) |
≤2000 |
|
|
Form of tripping |
Thermal magnetic trip |
|
|
Instantaneous tripping characteristics |
B type |
3~3In |
|
C type |
5~10In |
|
|
D type |
10~20In |
|
|
Wiring method |
Without limitation |
|
|
Installation method |
TH31-7.5 Standard guide rail |
|
|
Pollution capacity |
2 |
|
|
Protection level |
Circuit breaker |
IP20 |
|
Installed in distribution box |
IP40 |
|

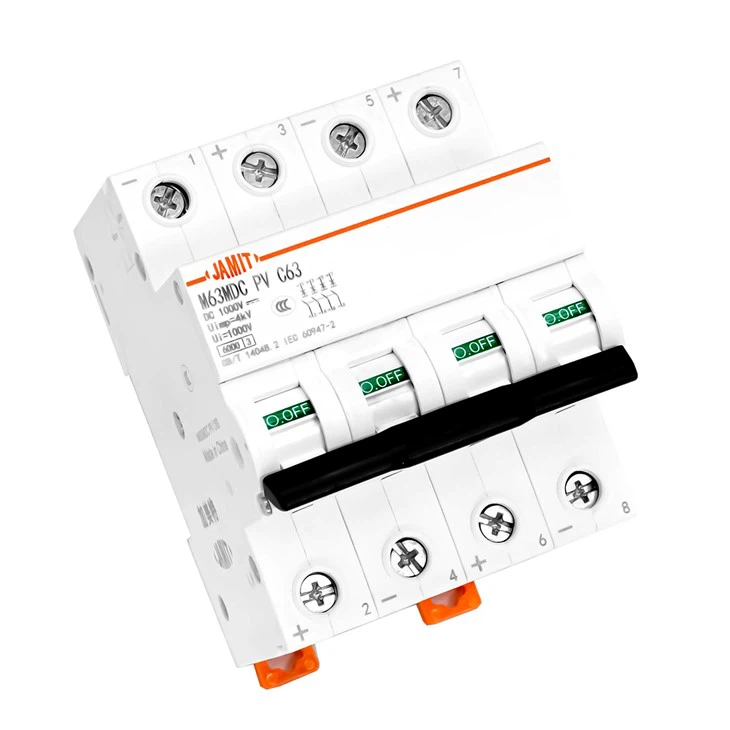

M63M DC
|
Product Model |
M63MDCPV |
|
|
Rated current (A) |
1. 2. 4. 6. 10. 16. 20. 25. 32. 40. 50. 63 |
|
|
Rated voltage UR(V) |
DC250V(1P) |
|
|
Pole No |
1P,2P,4P |
|
|
Mechanical life(times) |
30000(Enterprise standard) |
|
|
Electrical life(times) |
15000(Enterprise standard) |
|
|
Rated short-circuit capacity Isc(A) |
6000 |
|
|
Rated operation short-circuit breaking capacity Ibc(A) |
6000 |
|
|
Rated insulation voltage DC Uik(V) |
1000 |
|
|
Rated impulse withstand voltage Uimp(kV) |
4 |
|
|
Dielectric test voltage (V) |
2000(50Hz,1min) |
|
|
Anti-vibration (IEC/EN60068-2-6) |
No obvious vibration and impact |
|
|
Wire terminal |
Minimum sectional area of connectable conductor (mm²) |
1 |
|
Maximum sectional area of connectable conductor (mm²) |
35 |
|
|
Standard connection torque (N·m) |
3.5 |
|
|
Maximum allowable torque (N·m) |
5 |
|
|
Lead insertion depth (mm) |
10 |
|
|
Reference temperature (°C) |
30 |
|
|
Operating temperature (°C) |
-35~+70 |
|
|
Storage temperature (°C) |
-35~+85 |
|
|
Applicable altitude (m) |
≤2000 |
|
|
Form of tripping |
Thermal magnetic trip |
|
|
Instantaneous tripping characteristics |
B type |
5.5In~20% |
|
C type |
8.5In~20% |
|
|
D type |
- |
|
|
Wiring method |
Without limitation |
|
|
Installation method |
TH35-7.5 Standard guideway |
|
|
Pollution capacity |
2 |
|
|
Protection level |
Circuit breaker |
IP20 |
|
Installed in distribution box |
IP40 |
|

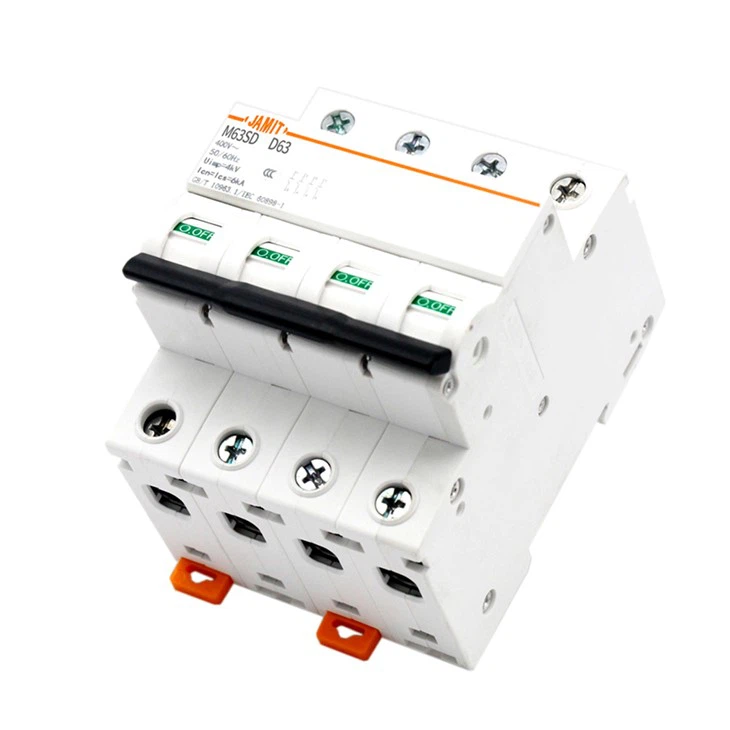

M63SD
|
Product Model |
M63SD |
|
|
Rated current (A) |
1. 2. 4. 6. 10. 16. 20. 25. 32. 40. 50. 63 |
|
|
Rated voltage UR(V) |
AC130/240V(1P, 1P+N, 2P) |
|
|
Rated operating frequency (Hz) |
50/60 |
|
|
Pole No |
1P. 2P. 3P. 4P. 1P+N. 3P+N |
|
|
Mechanical life(times) |
30000(Enterprise standard) |
|
|
Electrical life(times) |
15000(Enterprise standard) |
|
|
Rated short-circuit capacity ISC(A) |
6000 |
|
|
Rated operation short-circuit breaking capacity IBC(A) |
6000 |
|
|
Rated insulation voltage (kV) |
500 |
|
|
Rated impulse withstand voltage Uimp(kV) |
4 |
|
|
Dielectric test voltage (V) |
2000(50Hz,1min) |
|
|
Anti-vibration (IEC EN60668-2-6) |
No obvious vibration and impact |
|
|
Wire terminal |
Minimum sectional area of connectable conductor (mm²) |
1 |
|
Maximum sectional area of connectable conductor (mm²) |
35 |
|
|
Standard connection torque (N·m) |
3.5 |
|
|
Maximum allowable torque (N·m) |
5 |
|
|
Lead insertion depth (mm) |
10 |
|
|
Reference temperature (°C) |
30 |
|
|
Operating temperature (°C) |
-35~+70 |
|
|
Storage temperature (°C) |
-35~+85 |
|
|
Applicable altitude (m) |
≤2000 |
|
|
Form of tripping |
Thermal magnetic trip |
|
|
Instantaneous tripping characteristics |
B type |
3–5In |
|
C type |
5–10In |
|
|
D type |
10–20In |
|
|
Wiring method |
Without limitation |
|
|
Installation method |
TH35-7.5 Standard guiderail |
|
|
Pollution capacity |
2 |
|
|
Protection level |
Circuit breaker |
IP20 |
|
Installed in distribution box |
IP40 |
|
Appearance and Installation Dimension
M63M AC
M63M DC
M63SD
M63M AC
Technical Parameter：
*1) MCB M63M sectional area of connectable conductor: Min: 1mm²; Max: 35mm²
*2) Breaking capacity: 6kA
*3) Rated current: 1-63A; pole: 1P/2P/3P/4P/1P+N/3P+N; tripping curve:B/C/D;B curve》3ln-5ln/C curve》5ln-10ln/D curve》10ln-20ln
M63M DC
Technical Parameter：
*1) MCB M63M sectional area of connectable conductor: Min: 1mm²; Max: 35mm²
*2) Breaking capacity: 6kA
*3) Rated current: 1-63A; pole: 1P/2P/4P; tripping curve:B/C;B curve》5.5In±20%/C curve》8.5In±20%
M63SD
Technical Parameter：
*1) MCB M63SD sectional area of connectable conductor: Min: 1mm²; Max: 35mm²
*2) Breaking capacity: 6kA
*3) Rated current: 1-63A; pole: 1P/2P/3P/4P/1P+N/3P+N; tripping curve:B/C/D;B curve》3ln-5ln/C curve》5ln-10ln/D curve》10ln-20ln
Feature
Quick closing mechanism
instantaneous closing, efficient switching, reducing the risk of arcing and welding.
01
Integrated inlet and outlet structure
lower internal resistance, lower energy consumption and more energy conservation.
02
Bimetal bidirectional adjustment
bi-directional precise setting, suitable for multiple working conditions.
03
Super seismic optimization
stable seismic resistance, worry free in complex scenarios.
04

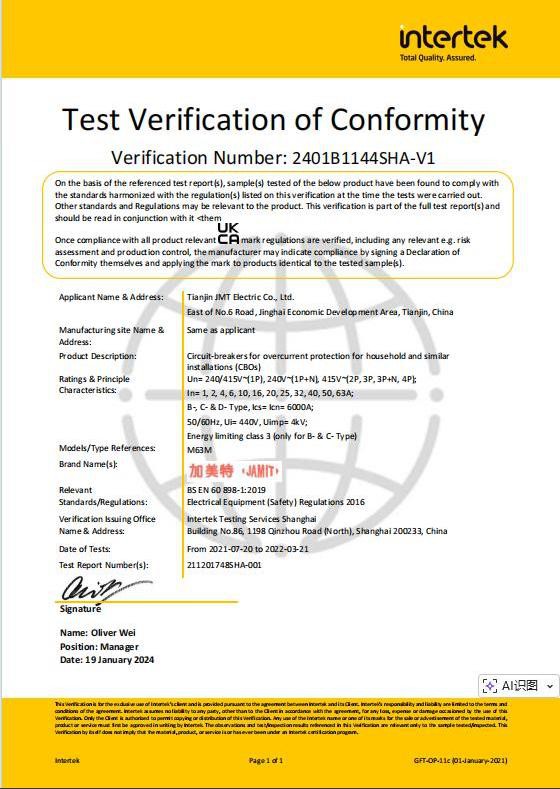

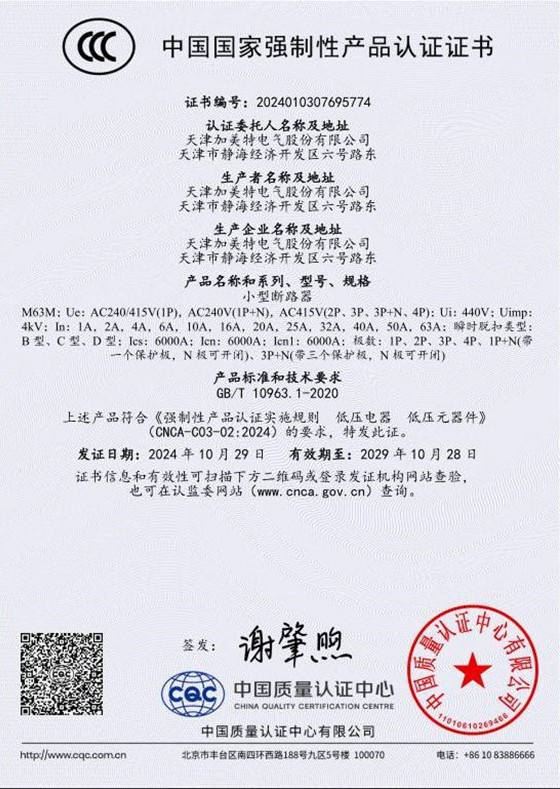

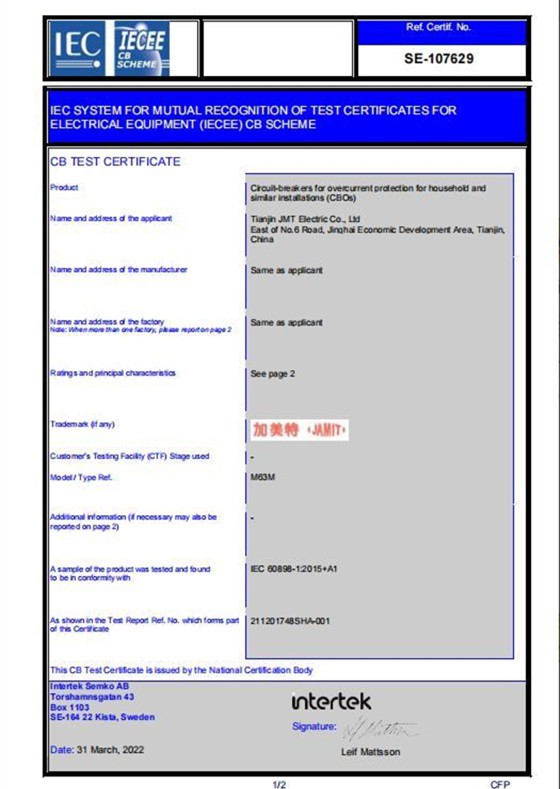

Certificate
