Tianjin JMT Electric Co., Ltd. is one of the leading manufacturers and suppliers of 125 a miniature circuit breaker in China. We warmly welcome you to buy advanced 125 a miniature circuit breaker made in China here from our factory. All customized products are with high quality and competitive price.

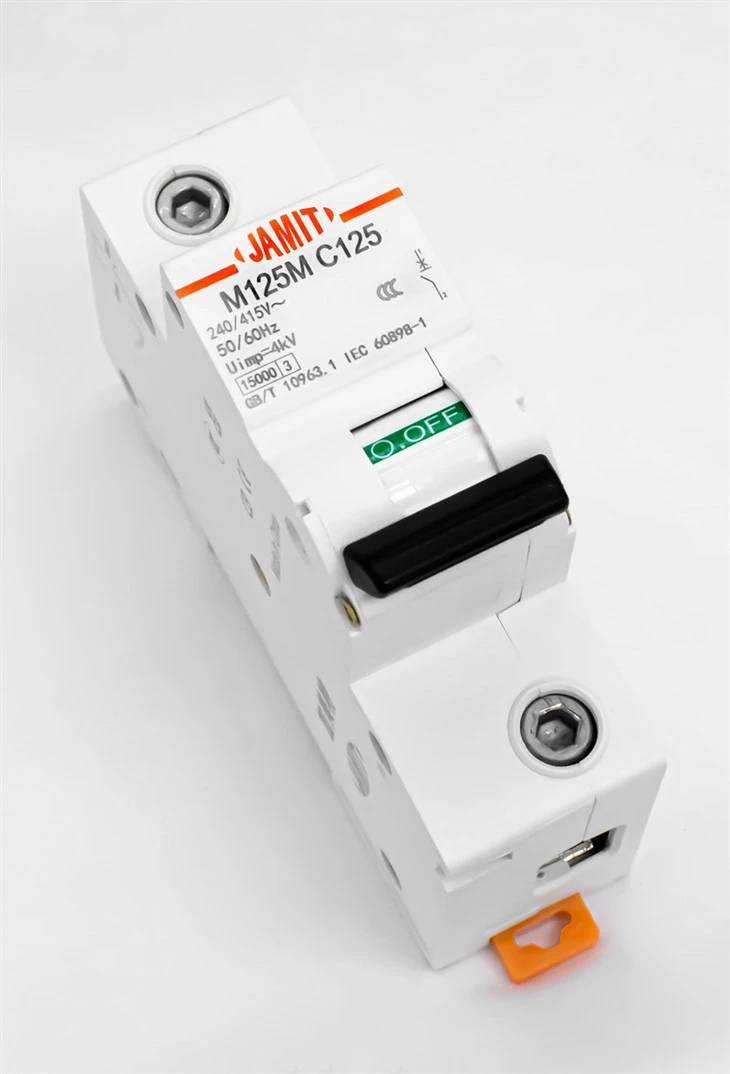

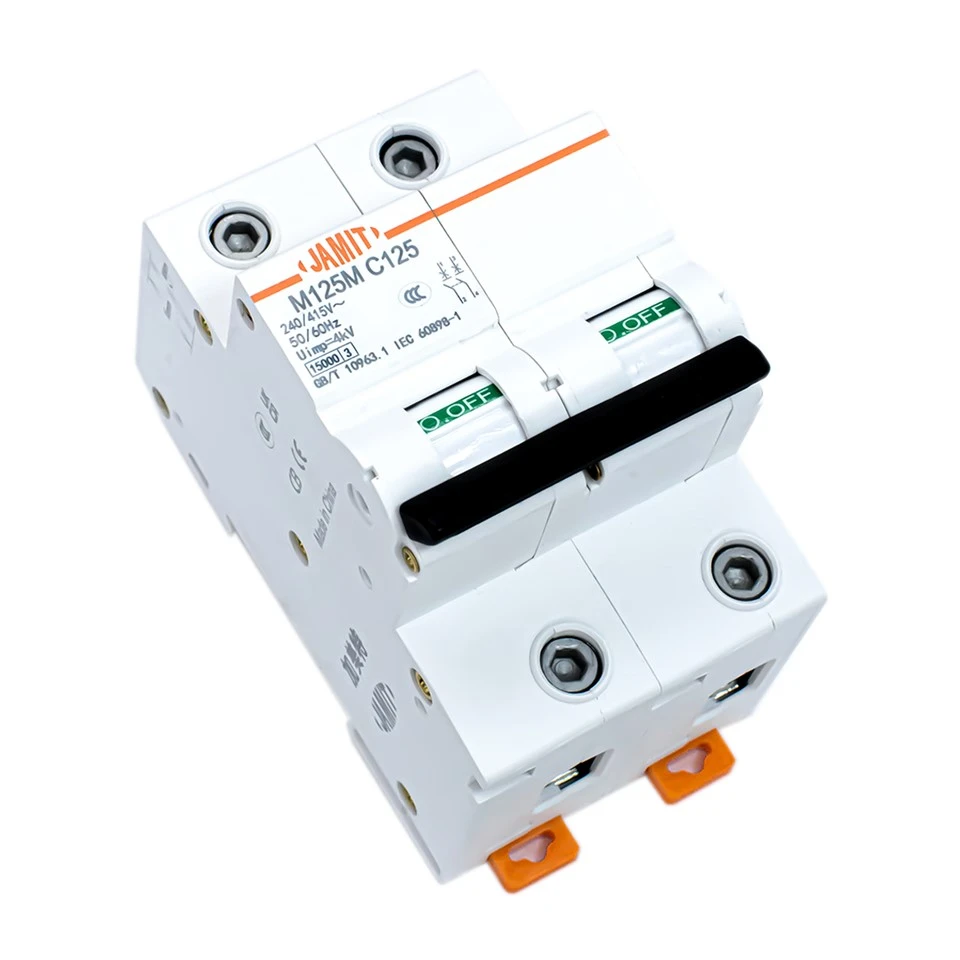

Product introduction	60-125A Electrical Miniature Circuit Breaker
Brand Name	JAMIT
Model	M125M
Application	Household, commercial office buildings, residential buildings, and general industrial applications
Rated current(A)	60,80,100,125
Max. Voltage	AC240V/AC415V
Rated short-circuit capacity Icn	15KA
Rated operation short-circuit breaking capacity Ics	15KA
Mechanical times	30,000
Pole	1P/2P/3P/4P
Size	9782.818mm(1P);2P 2;3P 3;4P *4
Materials	Case: PA 66, Coil: 100% copper
Characteristics	1P/2P/3P/4P Short circuit protection, overload protection, isolation function
Standard	GB/T 10963.1 IEC 60898-1
Certification	CCC, CE, CB, UKCA(United Kingdom)
Warranty time	36Months
Advantage	low energy consumption and high breakage circuit breaker
Package	imprint, inbox, master carton
Color	white & orange
MOQ	3000 poles
Payment	30% in advance, balance to be paid before shipment
Port	TJ/designated domestic port
Product Time	30days
Sample Time	7days
Delivery time	30days

Technical Parameters

Product Model		M12SM
Rated current (A)		60．80．100．125
Rated voltage Ue(V)		AC24V/15V(1P,2P) AC115V(3P,4P)
Rated operating frequency (Hz)		50/60
Pole No.		1P．2P．3P．4P
Mechanical life(times)		30000(Enterprise standard)
Electrical life(times)		15000(Enterprise standard)
Rated short-circuit capacity Icn(A)		15000
Rated operation short-circuit breaking capacity Ics(A)		15000
Rated insulation voltage Ui(V)		440
Rated impulse withstand voltage Uimp(kV)		4
Dielectric test voltage (V)		2000(50Hz,1min)
Anti-vibration (IEC/EN60068-2-6)		No obvious vibration and impact
Wire terminal	Minimum sectional area of connectable conductor (mm²)	10
	Maximum sectional area of connectable conductor (mm²)	50
	Standard connection torque (N·m)	6
	Maximum allowable torque (N·m)	15
	Lead insertion depth (mm)	10
Reference temperature (°C)		30
Operating temperature (°C)		-35~+70
Storage temperature (°C)		-35~+85
Applicable altitude (m)		≤2000
Form of tripping		Thermal magnetic trip
Instantaneous tripping characteristics	B type	-
	C type	5ln-10ln
	D type	10ln-15ln
Wiring method		Without limitation
Installation method		TH35-7.5 Standard guiderail
Pollution capacity		2
Protection level	Circuit breaker	IP20
	Installed in distribution box	IP40

*1) MCB M125M sectional area of connectable conductor: Min: 10mm²; Max: 50mm²

*2) Breaking capacity: 15kA

*3) Rated current: 1-63A; pole: 1P/2P/4P; tripping curve:C/D;C curve》5In-10In; D curve》10In-15In

Appearance and Installation Dimension

product-1005-548

Feature

Quick closing mechanism

instantaneous closing, efficient switching, reducing the risk of arcing and welding.

Integrated inlet and outlet structure

lower internal resistance, lower energy consumption and more energy conservation.

Bimetal bidirectional adjustment

bi-directional precise setting, suitable for multiple working conditions.

Super seismic optimization

stable seismic resistance, worry free in complex scenarios.
